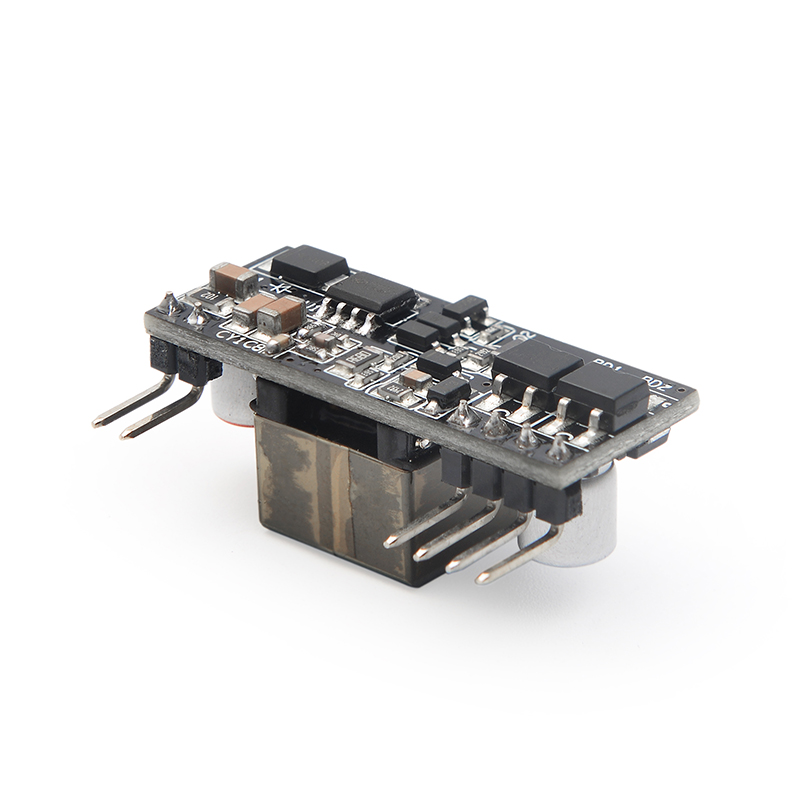

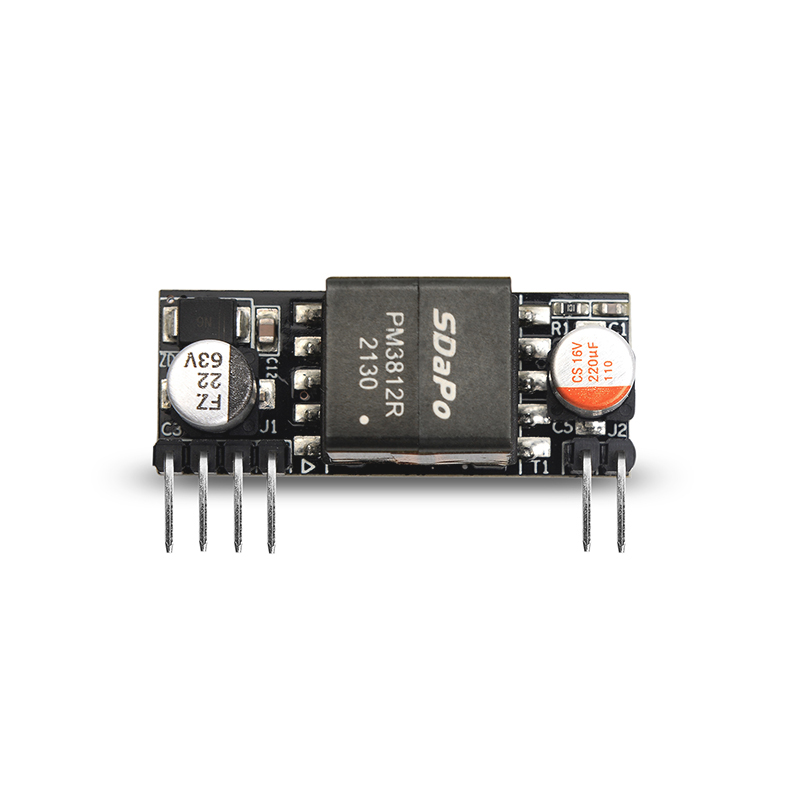

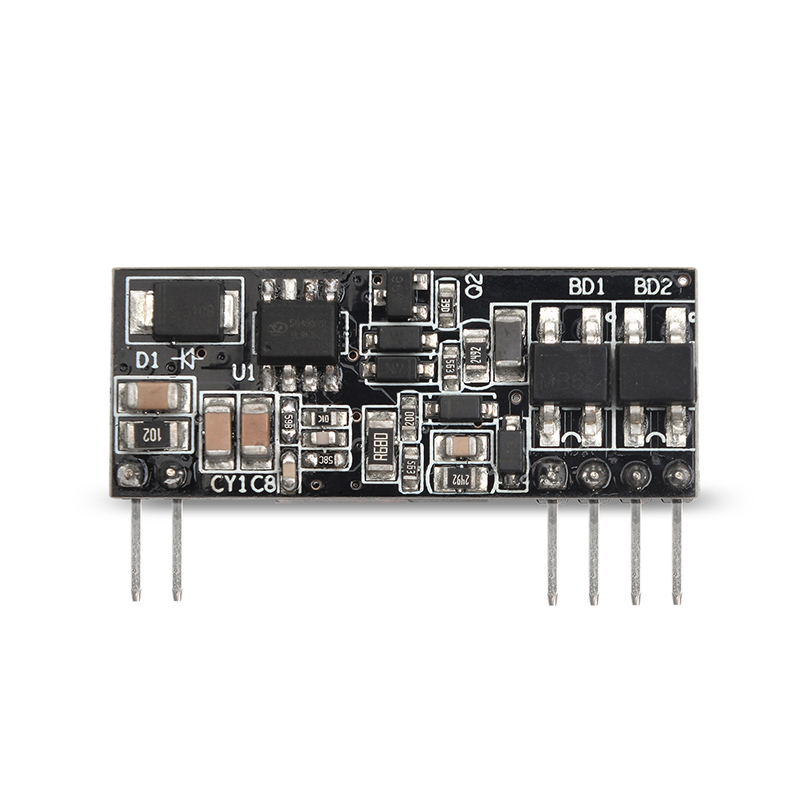

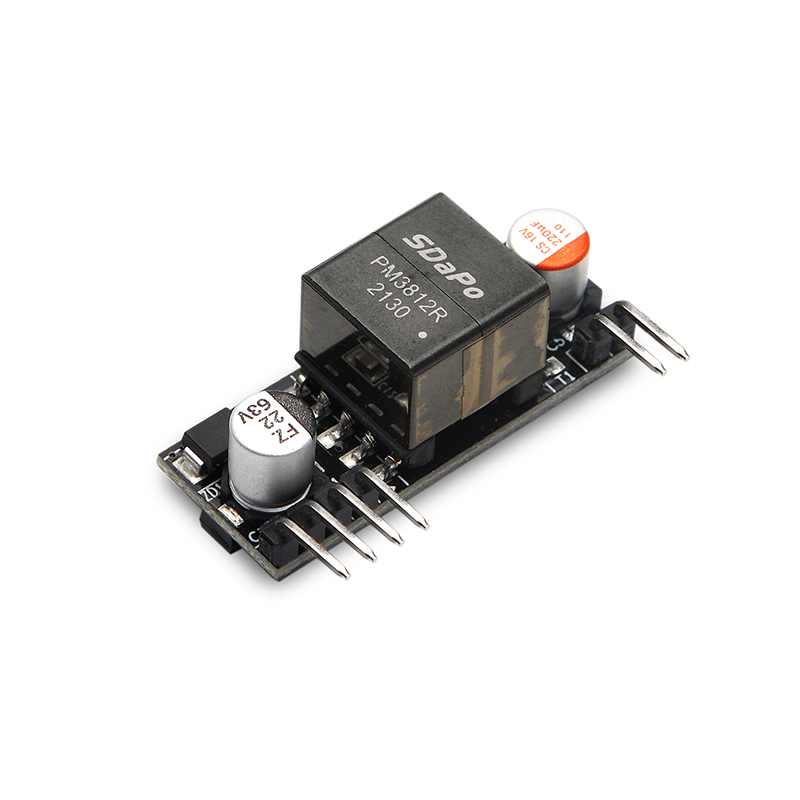

DP1435 12V 嵌入插针式标准48V 支持百兆千兆 PoE模块 PoE模组

IEEE802.3af 标准
PoE输入电压:37-57V(15.4W)
DC/OUT:12V/1A(12.95W)
ISO:1.5KV高压隔离
ModeA or ModeB都支持
大小:14*35.6mm
总功率:13W

支持10M/100M/1000M/10G等（看外围设计）

隔离型插针式POE模组
固态电容版本

产品描述

一、产品特性：

1、规范：完全符合.3af/at标准，class 0分级

2、安全：具有输入过压/欠压、输出短路、过流、芯片过温保护功能

3、尺寸：14X35.6mm，专为嵌结构设计

4、兼容性：支持中间跨接法和末端跨接法

5、1500V高压隔离（输入对输出）；

6、宽温工作：-25°到75°稳定工作

7、新款更改为固态电容版本，寿命长，纹波低，性能更好

二、系统框图

三、接口定义：

Pin #	Name
1	VA1	RX Input (1). This input pin is used in conjunction with VA2 and connects tothe centre tap of the transformer connected to pins 1 & 2 of the RJ45 connector (RX) - it is not polarity sensitive.
2	VA2	TX Input (2).This input pin is used in conjunction with VA1 and connects tothe centre tap of the transformer connected to pins 3 & 6 of the RJ45 connector (TX) - it is not polarity sensitive.
3	VB1	Direct Input (1). This input pin is used in conjunction with VB2 and connectsto pin 4 & 5 of the RJ45 connector - it is not polarity sensitive.
4	VB2	Direct Input (2). This input pin is used in conjunction with VB1 and connectsto pin 7 & 8 of the RJ45 connector - it is not polarity sensitive.
5	GND	DC Return. This pin is the return path for the +VDC output.
6	VOUT	DC Output.This pin provides the regulated output from the DC/DC converter.

四、尺寸结构

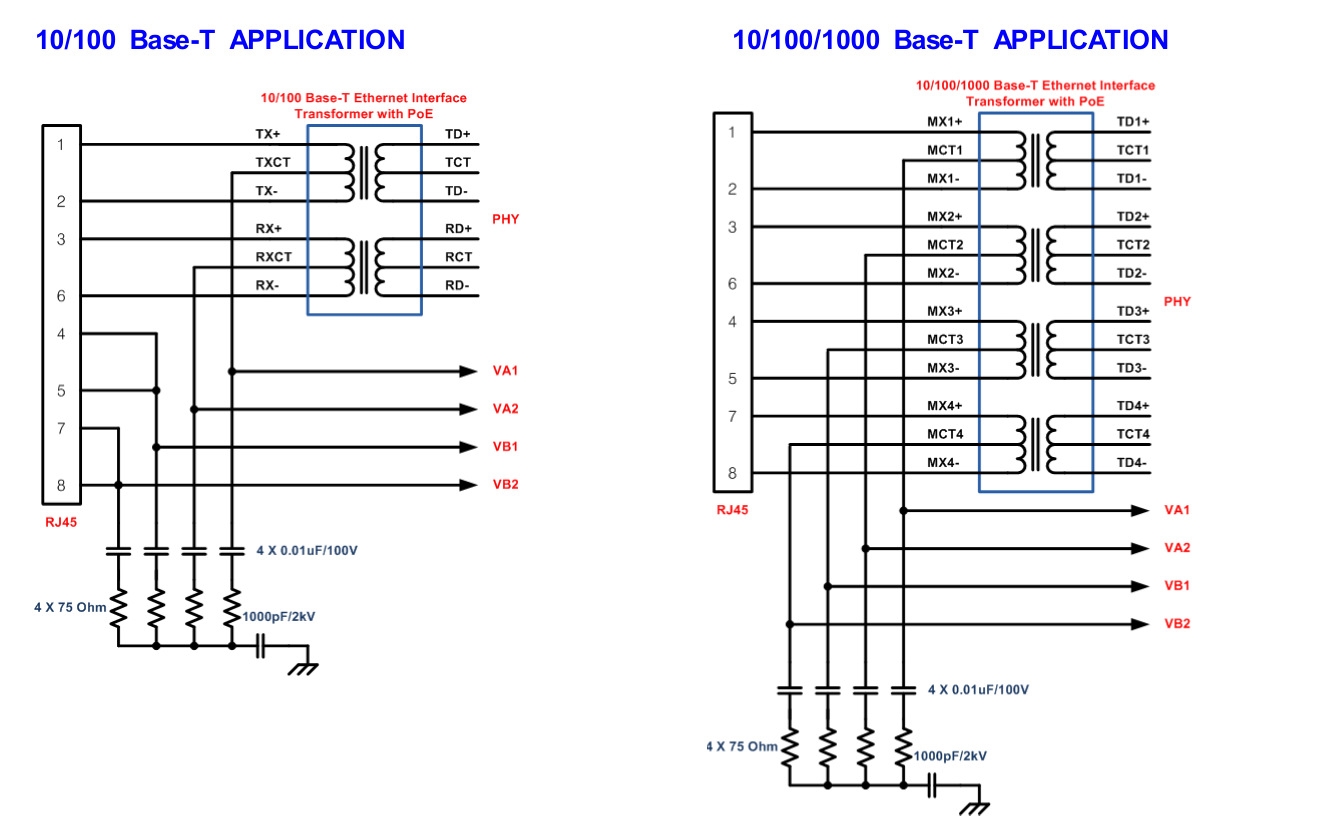

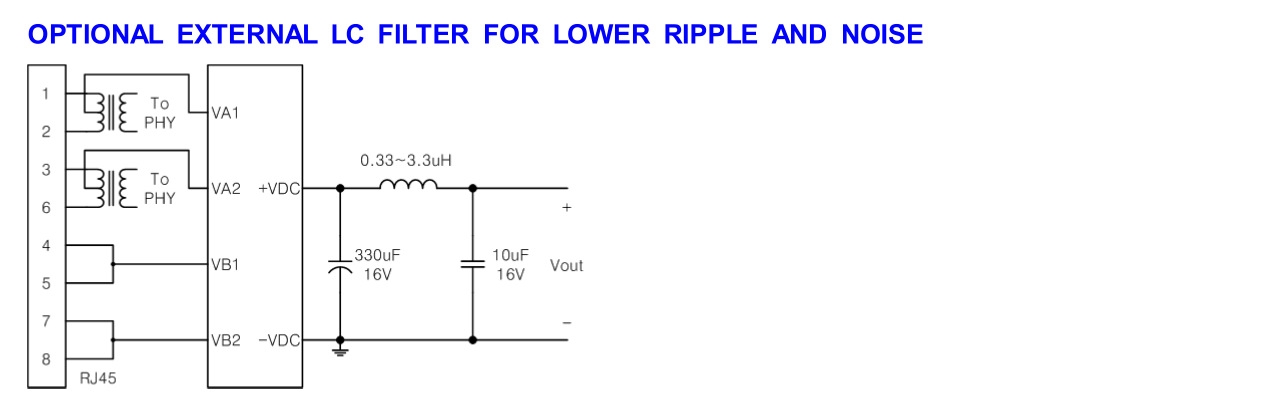

五、典型应用

ELECTRICAL SPECIFICATIONS
