产品描述

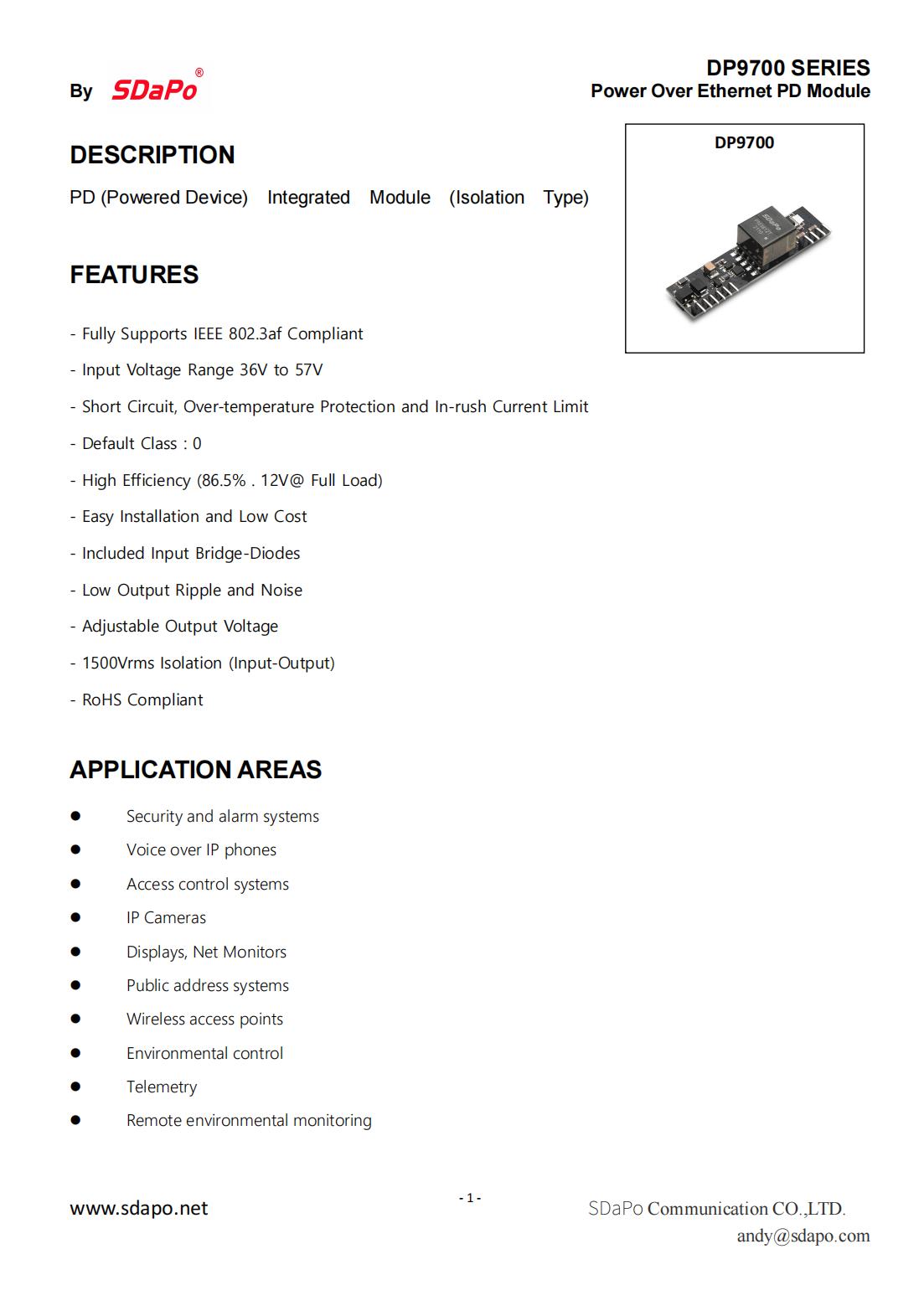

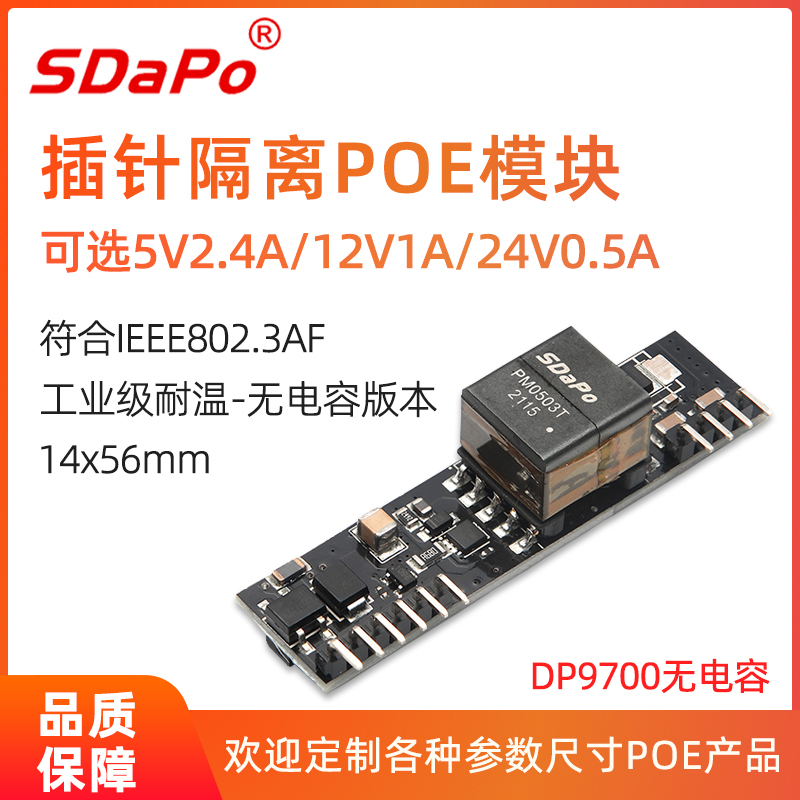

DESCRIPTION
13W PD(Powered Device) ( Type)
FEATURES
- IEEE802.3af compliant.
- Low cost.
- Support PoE applications in both of Fast / Gigabit Ethernet environments.
- Support wide input voltage range 37Vdc to 57Vdc.
- Thermal cut off.
- Short circuit protection.
- Over current protection
- High DC/DC converting efficiency.
- Less external component one output decoupling capacitor.
- level 1.5KVrms.
- Enhanced surge protection
- Internal build in 2 channel bridge rectifiers

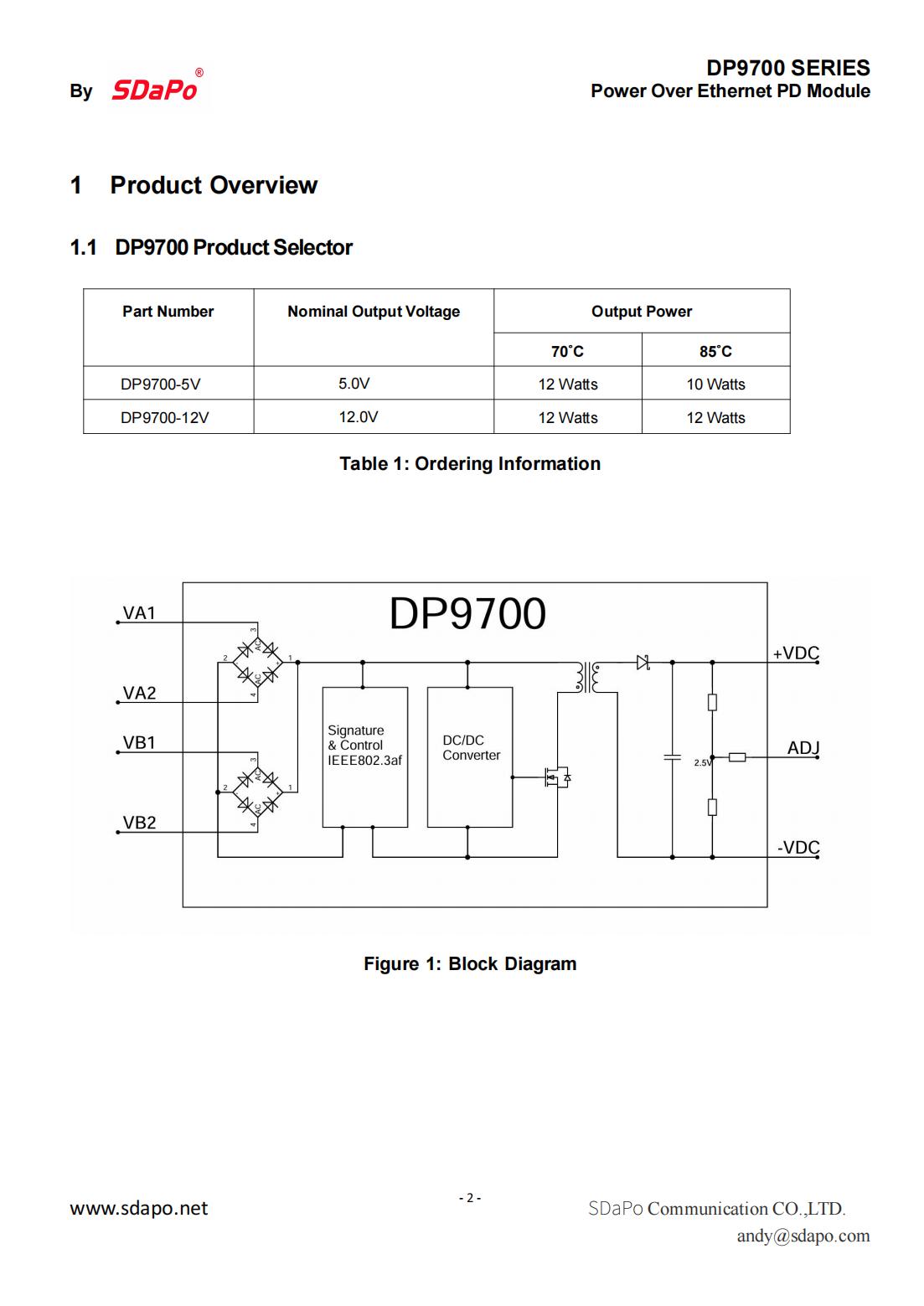

List
| Part | / | Power | Input | |
| 5.1Vdc / 2.55A | 13W @ 25°C | 48Vdc | ||
| 12Vdc / 1.1A | 13W @ 25°C | 48Vdc |

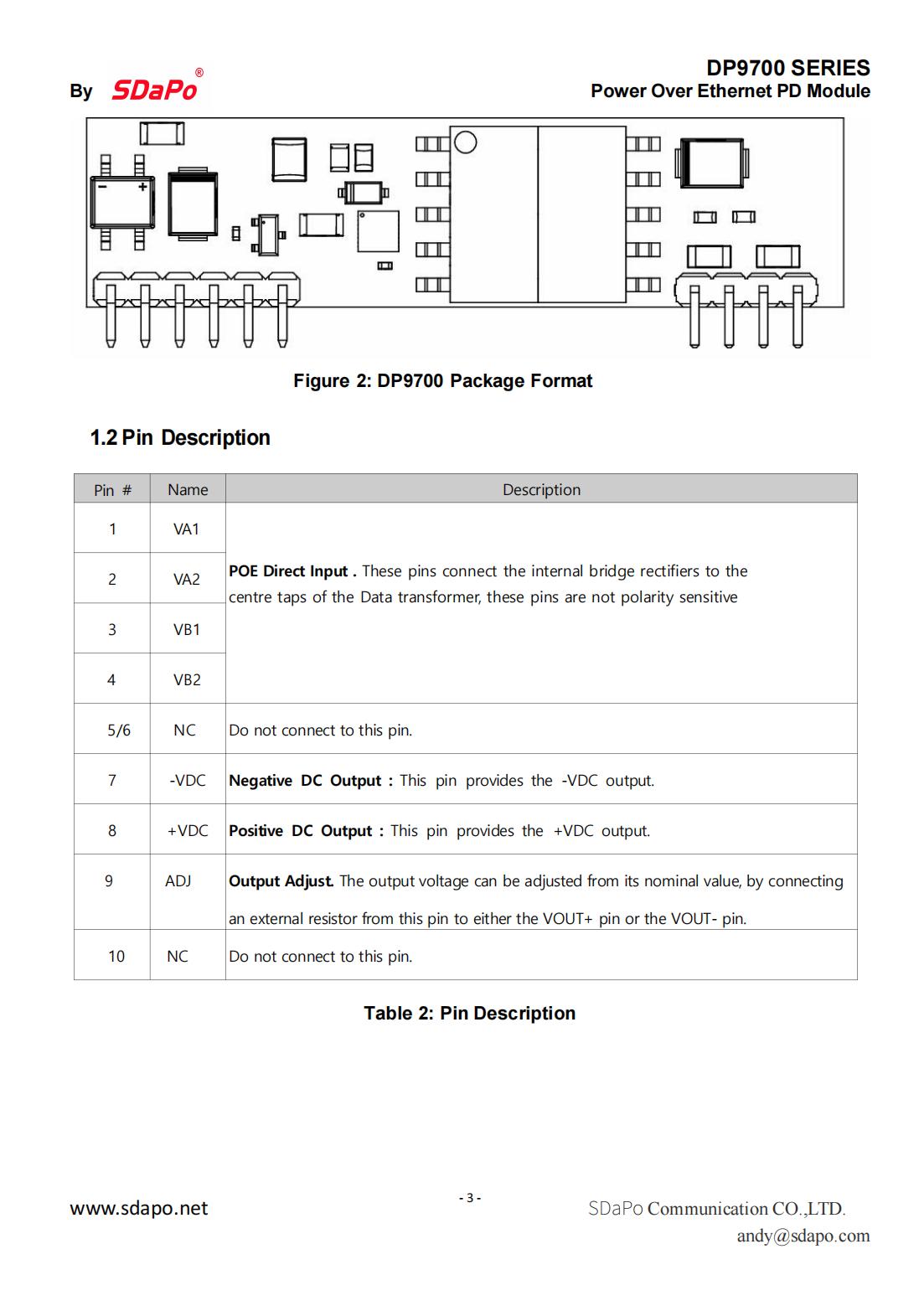

PIN ASSIGNMENT

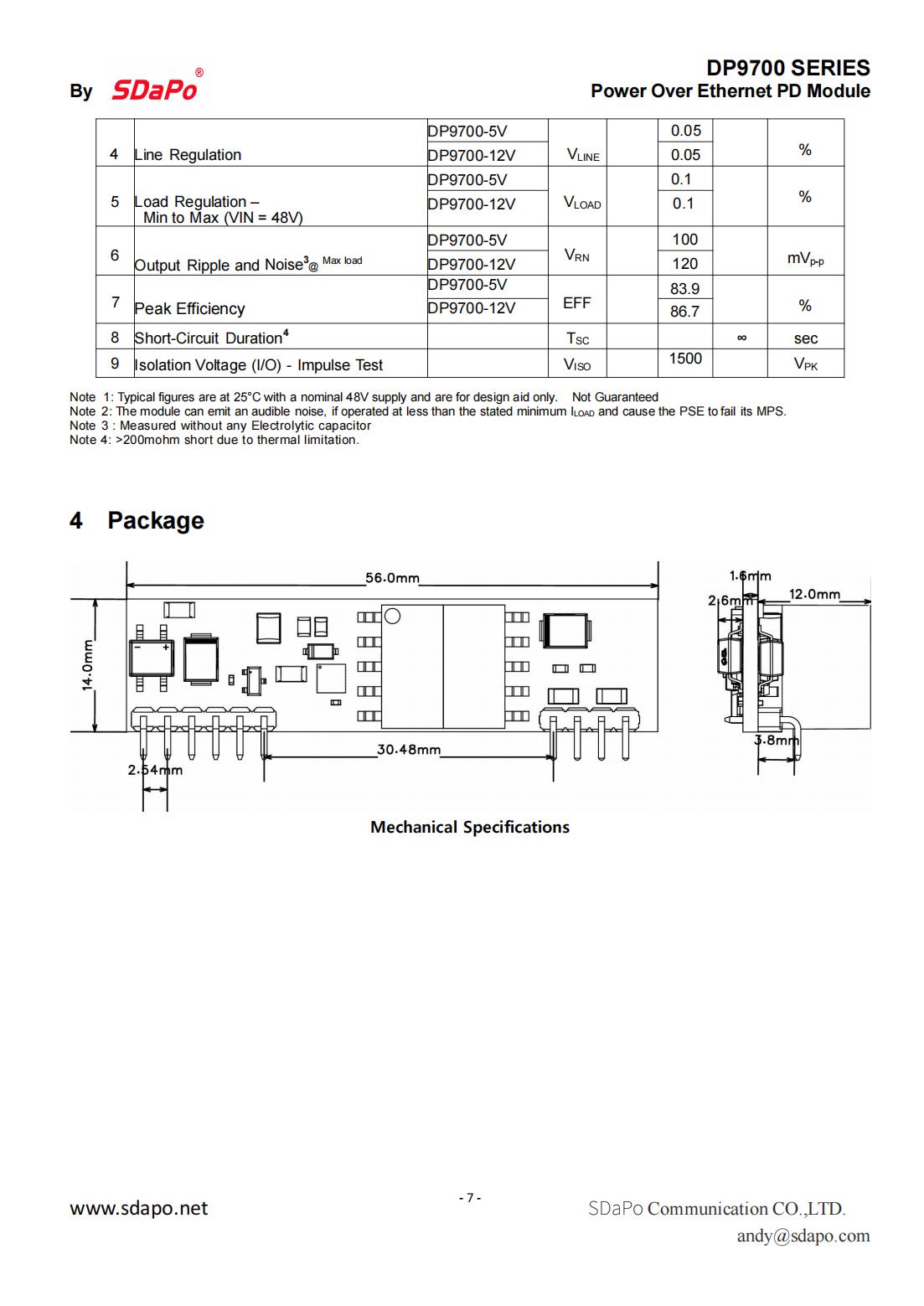

Package

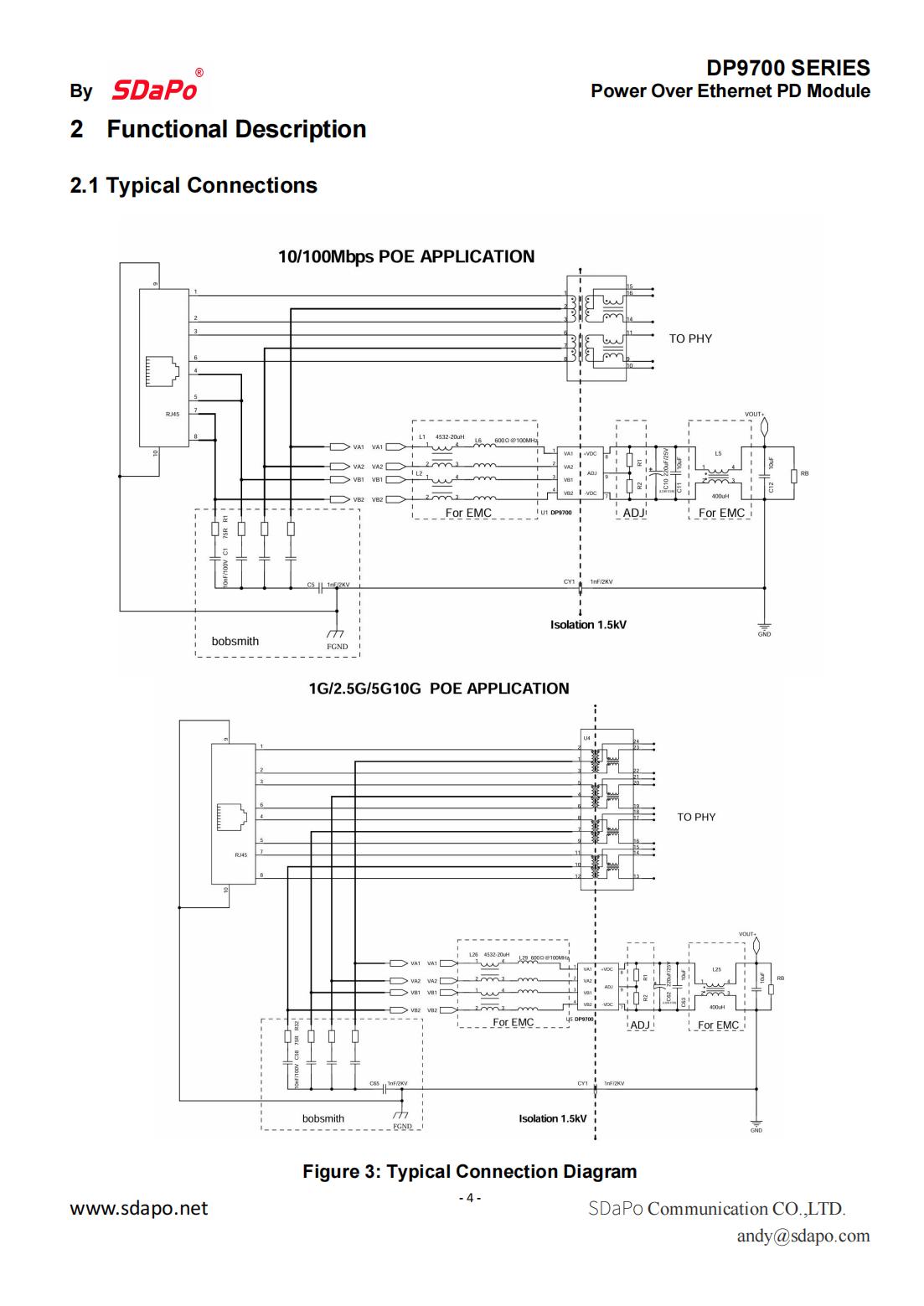

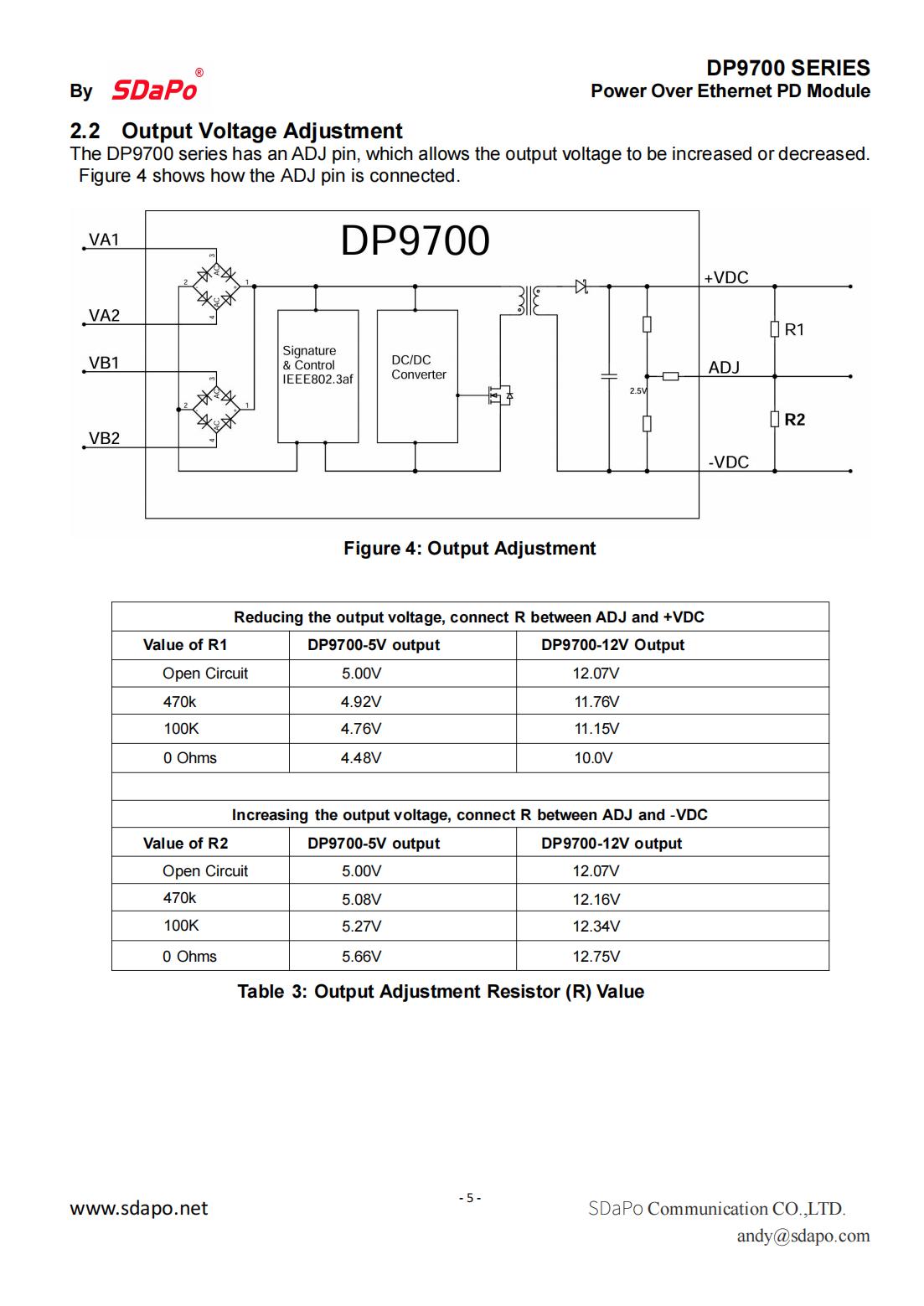

Typical Application

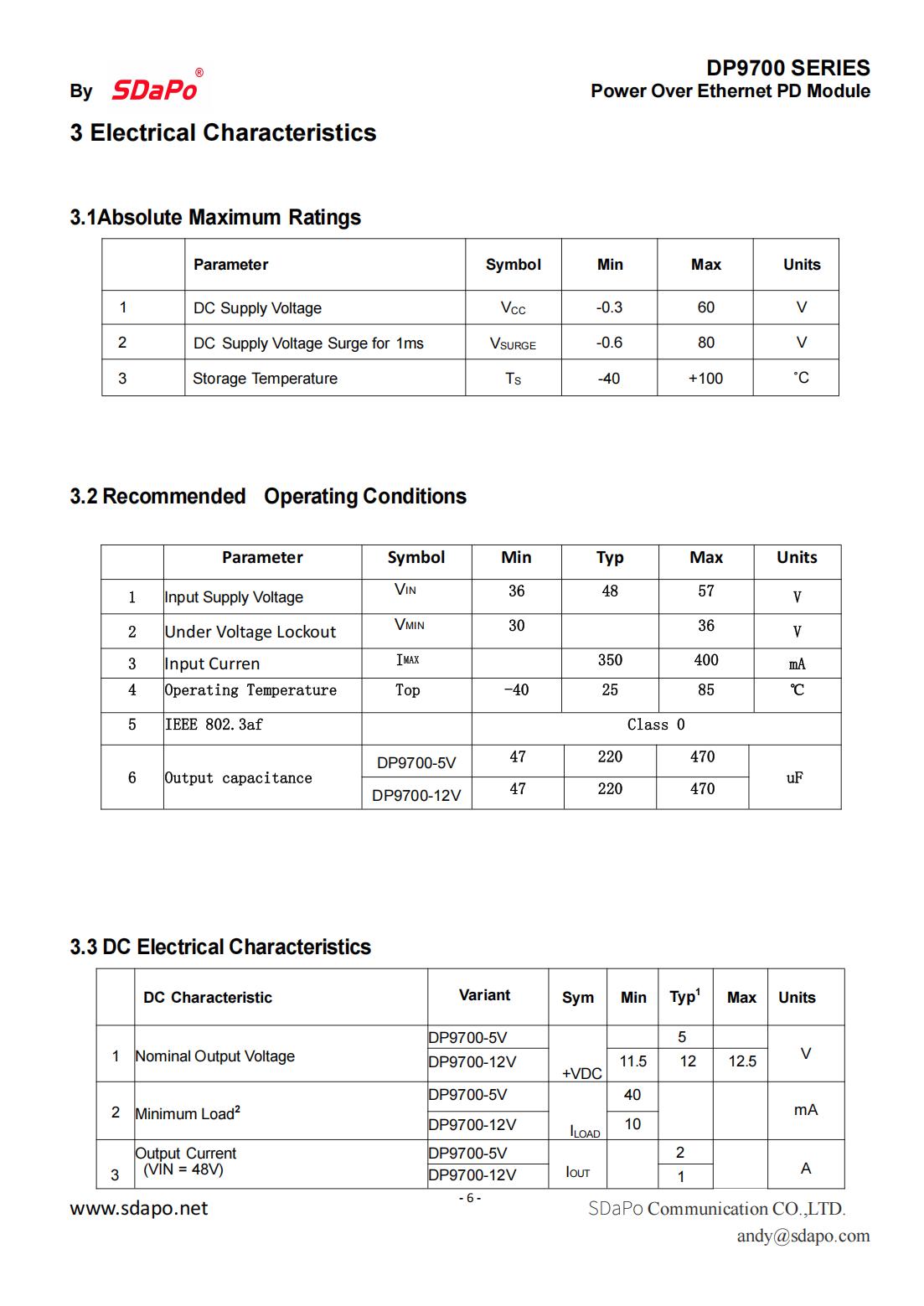

ELECTRICAL SPECIFICATIONS
| No | Item | Specification | Comment |
| 1 | Input | 44~57V | |
| 2 | 12V Typ. | ||
| 5.1V Typ. | |||
| 3 | (Vin=56V) | 1.3A Max. | |
| 3A Max. | |||
| 4 | Line Regulation | 5% | |
| 5 | Load Regulation | 5% | |
| 6 | & Noise | 200mVp-p max. | |
| 7 | Efficiency | 88% max. | |
| 84% max | |||
| 8 | Input to | 1.5 KV | |
| 9 | Type of DC/DC Converter | Flyback Type | |
| 10 | Operating Temperature | -20 ~ +60 ℃ |
